Nut special ZP 01.101

Special Nut ZP 01.101 for Grain Loader Front Travel

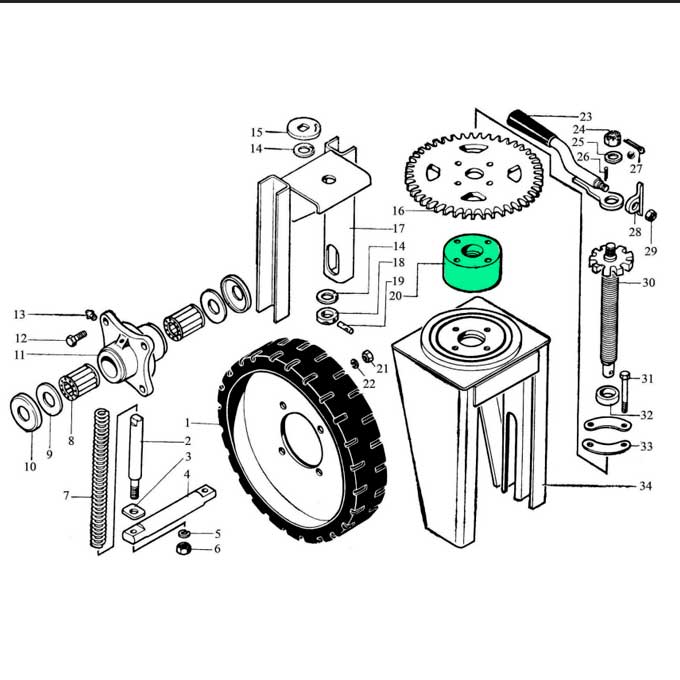

The special nut ZP 01.101 is a massive support part with an internal trapezoidal thread, which is an integral part of the front travel position adjustment mechanism of the ZM-60 series grain loaders. In the kinematic scheme of the lifting assembly, it acts as a stationary power base: the nut is rigidly mounted on the upper platform of the outer yoke (ZP 01.050) and serves as a support link for the front travel screw ZP 01.070. It is precisely this element that takes on the main axial force and the static weight of the entire front section of the unit's frame during height adjustment. Thanks to the precise profile of the internal thread, the nut forms a reliable self-braking connection with the screw, ensuring smooth movement of the inner leg with the wheel and secure fixation of the scraper feeders at the required height above the threshing floor surface without the risk of spontaneous sagging of the structure.

Design Features and Technical Specifications of the Nut ZP 01.101

• Catalogue number: ZP 01.101
• Material: Gray cast iron SCh 20 (heavy-duty modification - Steel 45)
• Weight: 3.3 (SCh 20) and 3.5 (Steel 45) kg
• Quantity per unit: 1 pc.
• Country of manufacture: Ukraine

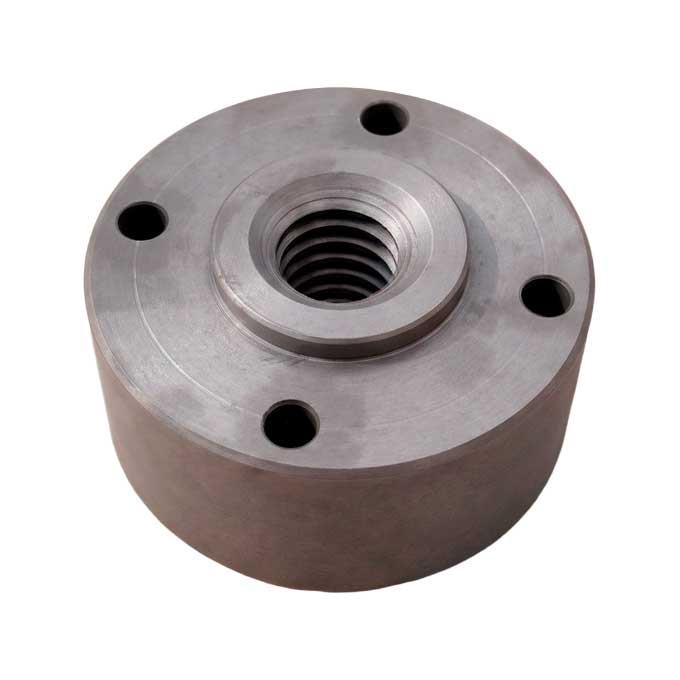

Visually and structurally, the nut ZP 01.101 is a massive all-metal cylindrical housing. The main working unit of the part is the central through hole with a deep trapezoidal thread, which is perfectly matched with the pitch of the front travel screw ZP 01.070. The specific geometry of the housing consists of the presence of a centering lip (shoulder) on the lower plane and a special groove (recess) in the upper part. The lower shoulder plays an important role during installation - it fits tightly into the corresponding central hole on the metal platform of the outer yoke ZP 01.050 - this simple but reliable engineering solution fully absorbs all transverse (radial) loads from the shaft rocking during operation. The design also provides four smooth through holes along the perimeter of the nut, which work to press the part to the frame using long M10x80 tie bolts. The upper groove has its own technological and operational purpose - it serves as a reservoir for accumulating lubricant, which gradually flows down onto the working threads. In addition, depending on the machine's year of manufacture and the features of the kinematic scheme, this groove can act as a universal seating location for various intermediate support elements.

The issue of choosing the material for this part is fundamental for understanding its properties. Historically, the original blueprints envisaged casting the nut exclusively from gray cast iron (SCh 20) - this is also justified by the physics of the friction process, where the graphite in the cast iron structure acts as a natural dry lubricant, forming an excellent anti-friction pair with the steel screw, resistant to scuffing. However, modern operational realities and the relocation of heavy machines over broken concrete surfaces have revealed the main drawback of cast iron - brittleness. From a sharp impact (for example, when the support wheel hits a deep pothole or a high warehouse threshold), the cast iron part can crack. That is why the Zavod Moroza offers a heavy-duty modification of the ZP 01.101, machined from solid rolled structural Steel 45, which, unlike cast iron, perfectly withstands dynamic shocks and does not crack under extreme overloads. To compensate for the lower anti-friction properties of steel and to avoid thread "biting" (galling), special lubrication channels can be additionally provided in such a reinforced part, allowing the operator to easily and regularly syringe the assembly with fresh grease, guaranteeing smooth screw travel and making the steel modification of the nut the most durable and reliable for our conditions.

Features of Repair and Replacement of the Special Nut ZP 01.101

The replacement of the special nut ZP 01.101 is a critical stage in repairing the grain loader's front travel, which requires a comprehensive approach. The main signal to replace this part is the appearance of significant axial play or the mechanism losing its self-braking ability (when the frame begins to spontaneously lower under its own weight). Practice shows that the most common mistake during repair is the attempt to replace only the nut, ignoring the condition of the screw. For a durable repair, the specialists at the Zavod Moroza recommend adhering to these main technical rules:

• Mandatory inspection of the screw (replacement in pair)
  Trapezoidal threads always wear in pairs - if you use a new cast iron or steel nut with an old screw ZP 01.070, the thread geometry of which is critically worn, it will quickly destroy the thread of the new nut. The old shaft here can simply shear off the new thread inside the nut in a single season, therefore, in the event of critical wear of the internal threads, we strongly advise replacing the part exclusively as a kit - as a screw pair.
• Preparation of the seating location
  Before installing a new nut, it is necessary to thoroughly clean the platform of the outer yoke (ZP 01.050), and the lower centering shoulder of the nut must sit tightly and without misalignment in the central hole of the yoke. If the platform is deformed or battered by previous impacts, it must be leveled - here, any angular misalignment when tightening the four M10x80 bolts will cause the screw to work under bending stress, and the mechanism may constantly jam.
• Proper initial lubrication
  This especially applies to the heavy-duty steel modification of the nut, where before the first assembly of the unit, the threaded channel of the nut and the screw itself must be generously lubricated with thick grease (solid oil, lithol). It is also important to fill the upper reservoir groove with grease so that during the first rotations under load, the metal does not work "dry", and the threaded pair receives the necessary film for smooth sliding.

Performing these simple but important procedures guarantees that the renewed assembly will operate without jamming and will maximally extend the working life of the new part under high load conditions, completely eliminating the risk of a sudden failure of the mechanism in the height of the working season.

Factory Modifications and Compatibility of the Special Nut ZP 01.101

Over decades of production and modernization of grain loaders by various enterprises, as well as after countless garage repairs, the front travel assembly has undergone a multitude of design changes, so the seating location for the special nut ZP 01.101 on your machine may differ from classic blueprints, and this is an absolutely normal situation for domestic farms.

First of all, this concerns the geometry of the mating elements. The lower centering shoulders and upper reservoir grooves on the nuts come in different diameters and depths, as they were fitted to specific modifications of outer yokes and various types of thrust elements. Moreover, the mounting base itself may differ - the four holes along the perimeter often have a different center-to-center arrangement or are drilled for non-standard, thicker bolts. When modifying or retrofitting our clients' grain loaders at enterprises, our specialists have also encountered even more atypical solutions for the front travel, where, for example, instead of a classic nut on the yoke, a specific bearing housing with an internal thread may be mounted, a homemade bushing dead-welded to the platform, or an assembly structurally integrated with a massive protective shroud.

The specialists at the Zavod Moroza perfectly know this technical "zoo" and understand that a standard part from our catalogue does not always fit reworked modifications. We approach each order individually and delve into the kinematics of your specific unit in detail. Thanks to our experience, it is usually enough to send us a few photos of your old assembly or to take basic measurements of the seating location right on the farm so that we can unmistakably determine the required configuration. If the mounting on your yoke is non-standard, our engineers are ready to quickly adapt the part - change the diameter of the centering shoulder, precisely shift the coordinates of the mounting holes to your dimensions, or machine a completely unique, improved support assembly. We analyze your technical situation and manufacture a part that integrates perfectly specifically into your machine, relieving you of the need to cut or re-weld the load-bearing structure.

Causes of Premature Wear of the Special Nut ZP 01.101

Since the special nut ZP 01.101 is the central support base of the entire lifting mechanism, it is constantly under significant static and dynamic load. Its failure is rarely sudden and is most often caused by gradual abrasive wearing of the thread. The operation of a grain loader is inevitably accompanied by high dustiness, due to which grain dust, sand, and fine debris settle on the lubricated screw, forming an aggressive abrasive paste, and subsequently, with each height adjustment or position change, it methodically grinds away the internal trapezoidal threads of the nut. Over time, the thread profile thins, a critical axial play occurs, and the mechanism loses the ability to stably hold the set clearance.

The process of thread destruction can also be accelerated by working with misalignment - when the metal platform of the outer yoke is deformed by previous loads, the nut is fixed not perpendicular to the screw axis, forcing the steel shaft to rub exclusively against one side of the internal thread. This leads to intense unilateral wear of the threads and constant jamming of the manual drive. For the heavy-duty steel modification of the nut, an additional wear factor is often oil starvation - if the part is operated without regular syringing and the "steel on steel" pair works practically dry. This causes excessive friction, heating, the appearance of micro-scuffs, and gradual "biting" (galling) of the thread, due to which the operator has to apply excessive effort to the lever, which exacerbates the situation even more.

A separate category of breakdowns is destruction from dynamic shocks, which is the main risk for classic cast iron parts. During relocations of the grain loader or its towing with a raised frame over broken concrete, when crossing high warehouse thresholds or when the support wheel hits obstacles, the entire colossal impulse is transmitted directly to the nut housing. For gray cast iron, such harsh overloads often lead to the formation of cracks or the splitting of the housing, which requires immediate replacement of the entire support assembly before the fragments of the part and a sharp misalignment deform the screw itself and smash the metal platform of the outer yoke.

Buy Special Nut ZP 01.101 for ZM-60

The reliability of the grain loader's lifting mechanism begins with a high-quality support base, and it is precisely the special nut ZP 01.101 that is the part directly affecting the efficient operation and convenience of the daily adjustment of the equipment. The Zavod Moroza offers agrarians a rational choice - you can order both the classic execution made of gray cast iron (SCh 20) for the anti-friction sliding envisaged by engineers, and the heavy-duty steel modification (Steel 45), which is guaranteed to withstand the harshest shock loads on broken threshing floors, which corresponds more to our reality.

We understand that each unit has its own history of operation, therefore we offer the shipment of standardized spare parts, as well as deeper and more reliable engineering solutions. Also, depending on the condition of your front travel, you can purchase either a separate nut (including with individual adaptation of the mounts for your yoke), or a fully ready, perfectly lapped screw pair (nut ZP 01.101 + screw ZP 01.070), or a fully equipped lifting assembly complete with a handle and pawl.

The stable operation of the lifting mechanism and the ease of daily adjustment of the equipment directly depend on the precise geometry of the threaded surfaces. Contact our technical specialists for a consultation - we will help you determine the optimal material of execution, promptly machine a non-standard modification if necessary, and prepare a spare part that will perfectly fit your seating location, providing the mechanism with original smoothness and ease of control.
