Z-9 Star Wheel of the ZP 01.070

Z-9 Star Wheel of the ZP 01.070 Front Travel Screw of the Grain Loader

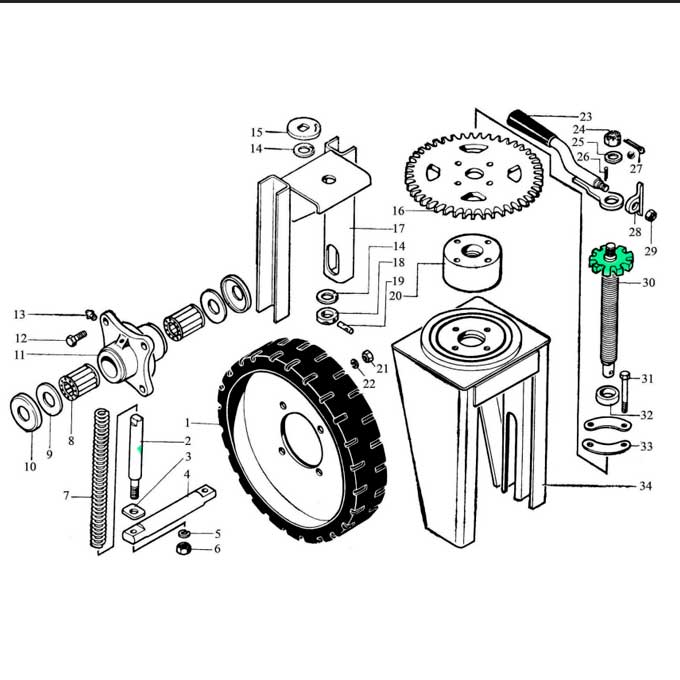

The 9-tooth gear wheel (Z-9), which has received the characteristic name "star wheel" among operators, is an integral working element of the lifting screw ZP 01.070 in the front travel system of the ZM-60 series grain loaders. Structurally, this toothed part is rigidly welded to the upper part of the shaft and acts as the base for the ratchet mechanism adjusting the clearance of the front section of the grain loader. Its main task is to ensure convenient and metered rotation of the heavy screw under load. In pair with the rotary handle ZP 01.060 and the movable pawl ZP 01.401, the star wheel forms a classic ratchet. Thanks to the possibility of flipping the pawl to the opposite side, the mechanism allows rotating the screw in both directions - both for lifting and lowering. Such an engineering solution relieves the operator of the need to awkwardly turn the shaft in a full circle - it is enough to make simple reciprocating movements with the lever, and with each such movement the screw rotates by a specific angle, smoothly changing the height of the front section of the frame. It is precisely this assembly that makes it easy to transfer the machine from the transport position to the working one, accurately lowering the scraper feeders to the very surface of the threshing floor for maximally effective grain pickup.

Design Features and Technical Specifications of the ZP 01.070 Screw Star Wheel

• Catalogue number: part of the screw assembly ZP 01.070
• Material: Steel 40 (heavy-duty modifications are available)
• Quantity per unit: 1 pc.
• Country of manufacture: Ukraine

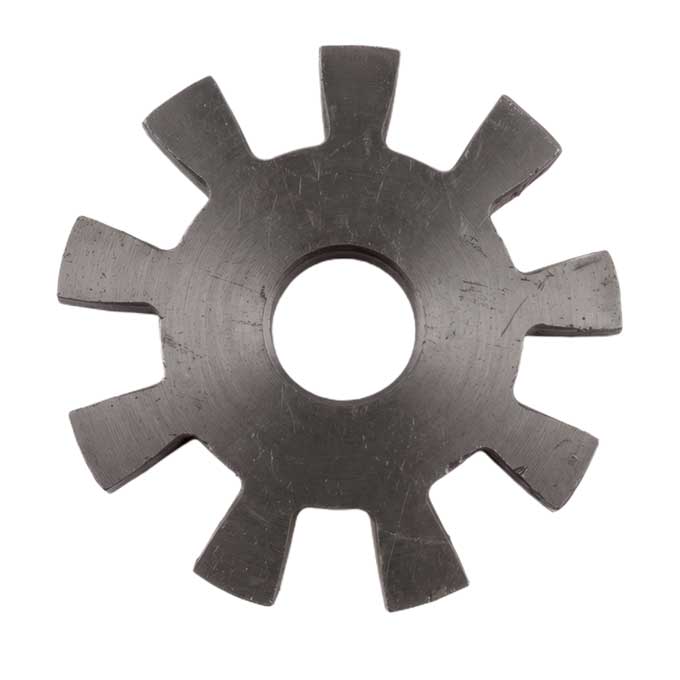

Visually and structurally, the Z-9 star wheel is not a separate removable part, but acts as an integral component of the lifting screw ZP 01.070. It is a massive metal disk, along the outer contour of which nine deep slots are evenly cut, forming characteristic trapezoidal teeth. The part is welded with a continuous seam to the upper part of the screw shank, forming a monolithic T-shaped base for installing the movable handle. The number of teeth (Z-9) is a regulated technical solution - such geometry provides the optimal rotation angle of the shaft per one movement of the lever.

To ensure the durability of the ratchet mechanism, the gear wheel is standardly manufactured from high-quality structural carbon Steel 40, and this choice is strictly balanced with the hardness of the movable pawl ZP 01.401 that works in pair with it, as well as the shaft of the screw ZP 01.070 itself, to which it is welded. The same class of metal in the rigid engagement zone guarantees uniform wear of the parts without destroying the edges; furthermore, this steel forms an ultra-strong welded joint with the shaft, which will not shear off under the action of load. For farms with increased work intensity, the specialists at the Zavod Moroza are ready to manufacture this part from even stronger steel grades, adapting the part for even more extreme operating conditions.

Features of Repair and Replacement of the Z-9 Star Wheel

Since the gear wheel is an integral part of the lifting screw ZP 01.070, the fastest and most reliable repair method is the installation of a completely new screw. At the factory, this part is welded in a special jig to ensure perfect alignment, but if you decide to independently cut off the worn part and weld a new star wheel onto the old screw shank in the workshop, pay maximum attention to the perpendicularity of the planes. Accurate positioning during welding will allow you to avoid misalignment of the gear ring, which prevents the pawl from properly locking between the teeth, causing the mechanism to slip and resulting in awkward lever operation.

Experienced operators also advise always checking the condition of the movable pawl ZP 01.401 during the replacement of the gear wheel - these two parts work in close contact and usually wear out synchronously. Renewing the ratchet pair as a kit will ensure maximally precise operation of the mechanism and predictable lever travel, saving you from the need to return to disassembling this unit in the near future. After mounting, it is worth conducting an inspection of the pawl fastening axis and the flip-over mechanism of the handle ZP 01.060. The main rule of operating this open assembly is maintaining cleanliness. It is sufficient to periodically brush out the cavities between the teeth from compacted dirt and rust - this will guarantee that the pawl will always drop to the full depth of the profile, reliably engaging the star wheel and turning the shaft to the set angle with each movement of the lever, which ensures smooth and uninterrupted lifting or lowering of the frame without slippage.

Factory Modifications and Compatibility of the Star Wheel (Z-9)

In the classic factory execution, the Z-9 gear wheel has a smooth round inner hole and is dead-welded to the round shank of the screw. However, over the years of grain loader modernizations and the search for more reliable solutions, quite a few alternative configurations of this assembly have appeared. Compatible modifications may differ in the overall metal thickness, a slightly altered tooth profile for non-standard pawls, or the use of alloyed steels for operation in extreme conditions.

One of the most effective engineering improvements is changing the geometry of the seating location. Instead of the standard round hole, the star wheel can be manufactured with a square or hexagonal inner profile, which is tightly fitted onto a correspondingly milled shaft shank. Such a fit shape mechanically locks the part from rotating - the facets take on the entire torque, completely relieving the shear load from the weld seam, and if such a part is additionally welded, the assembly becomes practically invulnerable to peak loads. In addition, the use of a square or hexagonal profile allows making this assembly fully detachable - instead of welding, the gear wheel can be rigidly fixed on the facets of the shaft using a retaining ring, cotter pin, or an end nut. This significantly simplifies repair - if necessary, the operator only needs to remove the retainer and replace just the star wheel itself, keeping the old screw in operation. Furthermore, such a detachable approach opens up quick access to other parts of the lifting assembly - by removing the upper gear wheel, one can easily dismantle for replacement the large steering sprocket ZP 01.402 or the support washers straight over the top of the shaft, without disassembling the entire front travel unit.

The specialists at the Zavod Moroza track these design changes and are ready to offer the optimal solution for your unit. We manufacture both standard monolithic screws with a welded gear wheel and reinforced profiled versions. Analyzing your current assembly, we will select or machine a part with the required fit shape, which will perfectly synchronize with your handle and pawl.

Main Causes of Premature Wear of the Gear Ring

The height adjustment mechanism operates in an open environment, therefore one of the main factors in the wear of the Z-9 star wheel is abrasive rubbing. Under the conditions of a threshing floor, sand and fine debris constantly settle on the parts - if the cavities between the teeth become clogged with compacted dirt (especially when traces of old grease remain on the assembly), the movable pawl loses the ability to drop to the full depth of the profile, and instead of a tight contact along the entire plane of the tooth, the retainer begins to catch only on its top, gradually wearing away and rounding the metal edges during each movement of the lever.

Another common cause of rapid destruction of the star wheel is prolonged operation in pair with a critically worn pawl ZP 01.401, or with one that does not correspond exactly to this ratchet wheel. This mechanism requires a precise mating of the working angles of both parts, and when the working face of the retainer has chips or severe rounding, it transmits the force not to the robust base of the wheel tooth, but to its sharp edge, which also causes point overstressing of the steel and rapid chipping of the edges of the Z-9 teeth under load.

The wear of the ring is also accelerated by a violation of the geometry of the rotary handle ZP 01.060, when in the event of deformation of the pawl fastening axis, the retainer begins to engage at an angle. Due to such a misalignment, the contact area of the parts decreases sharply, and the entire torque is transmitted to only one side of the tooth, which causes intensive unilateral metal wear, leading over time to dangerous slipping of the mechanism when changing the position of the grain loader.

Buy Z-9 Star Wheel of the Screw ZP 01.070 at the Zavod Moroza

Smooth and precise adjustment of the clearance of the front section of the grain loader directly depends on the correct geometry and good working order of each element of the ratchet mechanism. Understanding the intense specifics of work on the threshing floor, the specialists at the Zavod Moroza offer exclusively proven and durable components for the comprehensive restoration of the ZM-60 front travel.

Contact our technical specialists for a convenient consultation. We will help you determine the optimal execution variant for the lifting screw with the Z-9 gear wheel - from a classic welded monolith to an advanced detachable modification, which might better suit your operating conditions. Our production facility will ensure the fast preparation and dispatch of reliable spare parts that will perfectly fit your assembly, restoring the original ease to the lifting mechanism, and bringing you comfort during daily equipment control.
