Trimmer Band Brake Rod ZP 01.160 for ZM-60/60A

Trimmer Band Brake Rod ZP 01.160 for ZM-60/60A (Spring Guide)

The ZP 01.160 rod is a specialized movable element of the ZP 01.140 normally closed band brake system of the trimmer, which equips classic ZM-60 and ZM-60A series grain loaders. In the overall kinematic layout of the pivoting frame locking mechanism, this part performs the function of a power link and guide for the ZP 01.612 spring, which directly controls the automatic clamping of the brake band.

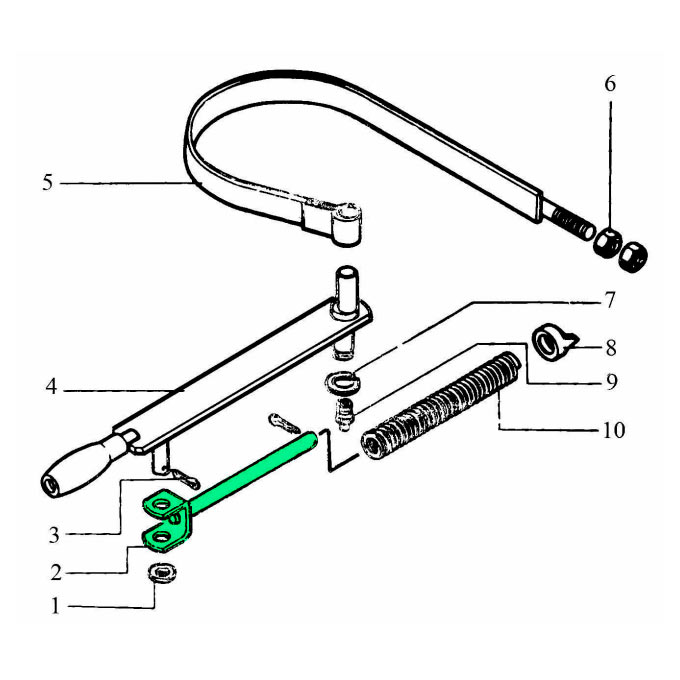

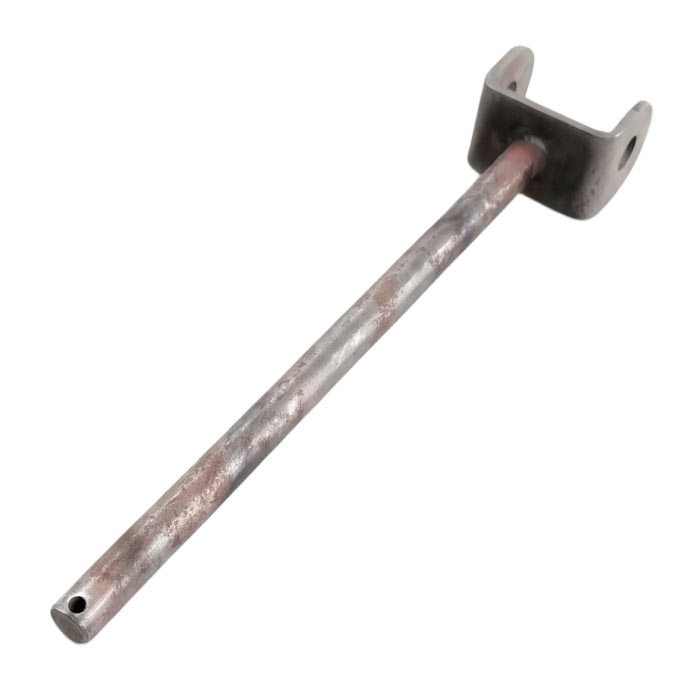

Structurally, the rod has a specific shape: on one end it terminates in a fork (eyelet) that connects to the ZP 01.150 eccentric control lever, while its other part is a long smooth rod. During assembly, a powerful spring is placed onto this rod, after which it passes through a through-hole in the vertical load-bearing plate of the frame. Thus, the spring becomes clamped between the rod's fork and the frame wall.

The engineering task of the ZP 01.160 rod is to ensure the correct transmission of force from the spring to the lever while preventing deformation of the spring itself during operation. When the operator pulls the handle to unbrake the trimmer, the lever moves along an arc and pulls the rod along with it. Because of this movement along an arc, the rod constantly changes its angle of inclination relative to the fixed hole in the frame, making its normal operation impossible without the use of a special ZP 01.608 spherical washer. This washer is placed onto the rod in front of the frame, acting as a hinge and allowing the part to freely change angle and slide without metal binding. On the free end of the rod emerging past the frame on the other side, a groove is provided for installing a small retaining ring, which bears no load but merely prevents the part from falling out during maximum spring expansion or assembly disassembly.

Technical Specifications of Rod ZP 01.160

• Catalog number: ZP 01.160
• Application: ZM-60, ZM-60A

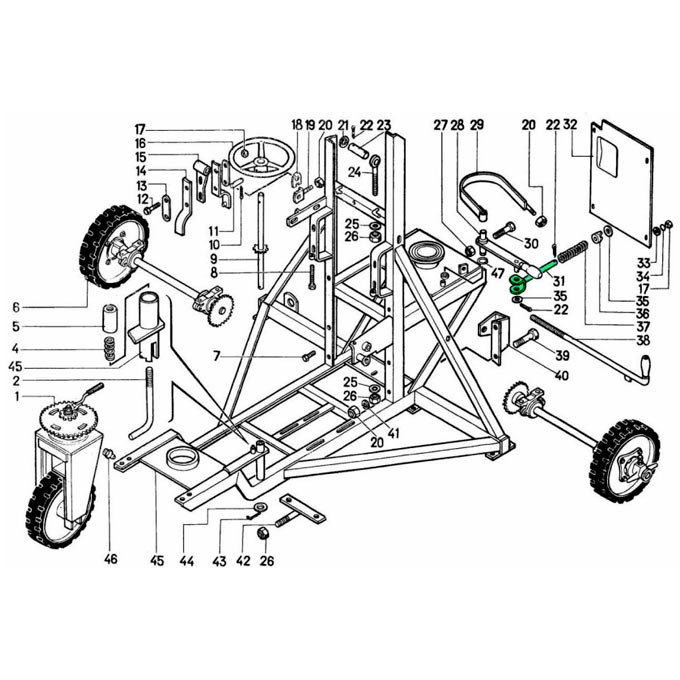

• Installation assembly: Trimmer band brake ZP 01.140
• Function: Lever power link and guiding axis for the brake spring
• Part weight: 0.277 kg
• Quantity per unit: 1 pc.

Although the ZP 01.160 rod is a fairly simple part, it operates under complex angle-changing conditions under constant spring pressure. Practice shows that the most common cause of its failure is not natural wear, but rod bending resulting from improper assembly on the threshing floor. If during disassembly the operator loses the factory ZP 01.608 spherical washer and replaces it with a regular flat one, the rod loses its ability to operate as a floating hinge. The flat washer lies rigidly against the frame plane, causing the rod to scrape hard against the edges of the hole as the lever moves along an arc — deep metal scoring appears, the part "seizes," and during the next unbraking effort, the lever simply bends the trapped rod.

Another vulnerable zone is the fork (eyelet) on the end of the rod, through which it pivotally connects to the eccentric brake lever. From constant vibrations of the unit and frequent switching, the holes in this fork gradually wear out, acquiring an oval shape. This creates parasitic backlash in the system — when moving the handle, it first takes up this backlash on the axis and only then begins to pull the rod itself and compress the spring, making the unbraking process imprecise.

Related Parts of Band Brake Rod ZP 01.160

During troubleshooting and replacement of the ZP 01.160 rod, the entire contact chain of the semi-automatic pivoting frame locking mechanism is subject to overhaul. To fully restore this assembly, you will need the following adjacent components:

• Spring (ZP 01.612)
• Spherical washer (ZP 01.608)
• Brake lever (ZP 01.150)
• Retaining ring 20 (MN 470-61)
• Brake band (ZP 01.240)
• Cotter pin 3.2 x 20 (GOST 397-79)

Replacing the ZP 01.160 rod requires a careful inspection of the unbraking system, as operating with misalignments will quickly put the new part out of action. First of all, the condition of the ZP 01.612 spring is checked — if the old rod was severely bent or jammed in the frame for a long time, the spring could lose its calculated rigidity or bow into an arc. Leaving such a deformed spring on a new straight rod is unacceptable, as it will not be able to provide sufficient linear force for reliable band clamping on the drum. Another important element of the assembly is the ZP 01.608 spherical washer — it must be installed on the rod in front of the hole in the frame, acting as a ball joint and compensating for angle changes as the lever moves along an arc. Installing the rod without this washer (or replacing it during a garage repair with a regular flat one) is the most common mistake leading to severe friction and bending of the new part. It is also worth inspecting the attachment point of the rod fork to the ZP 01.150 eccentric lever — if the holes for the connecting pin are worn and ovalized, parasitic backlash will remain in the system, making unbraking imprecise. During final assembly, a retaining ring should also be installed into the groove on the rod end — it bears no load but reliably protects the part from falling through the frame hole during disassembly or full mechanism expansion.

Buy Trimmer Band Brake Rod ZP 01.160 from Zavod Moroza

The reliability of trimmer locking and the ease of unbraking depend on the correct geometry of every small part. If you strive to preserve the authentic kinematics of your classic ZM-60, you can purchase a high-quality ZP 01.160 rod specifically for it at Zavod Moroza. We manufacture this part from durable metal, with a precise fork for the lever and a calibrated axis, guaranteeing correct force transmission from the spring.

At the same time, as manufacturers of modern equipment, we always offer farmers more rational engineering solutions. It is worth knowing that on our new units (ZM-60U, ZM-90U, ZM-120U), we completely abandoned the use of this rod and its accompanying capricious spherical washers and retaining rings. In our modernized version of the band brake, a direct-action principle is implemented — the spring is installed directly onto the extended shank of the band itself. This modification permanently eliminates the problem of misalignments, rod bending in the frame hole, and mechanism binding, making the assembly completely fail-safe.

However, whichever repair path you choose, we will provide you with the necessary base. Contact our sales department for component selection. We understand trimmer locking mechanisms of various generations down to the smallest detail. Whether you need only a classic ZP 01.160 rod and spherical washer for spot restoration of the factory assembly, or wish to order a modernized new-generation band brake entirely — we will discuss your situation and guarantee to provide the exact parts that will best solve your farm's tasks!
